How to extend Cartography with Analysis Jobs#

Overview#

In a nutshell, Analysis Jobs let you add your own customizations to Cartography by writing Neo4j queries. This helps you add powerful enhancements to your data without the need to write Python code.

The stages#

There are 3 stages to a cartography sync. First we create database indexes, next we ingest assets via intel modules, and finally we can run Analysis Jobs on the database (see cartography.sync.build_default_sync()). This tutorial focuses on Analysis Jobs.

How to run#

Built-in enrichment Analysis Jobs are typed Python definitions under cartography/analysis/*/analysis.py; the remaining built-in JSON jobs are migration/cleanup-only compatibility jobs. Custom JSON Analysis Jobs are still supported with --analysis-job-directory; each JSON file contains a list of Neo4j statements which get run in order. Although the order of statements within a single job is preserved, we don’t guarantee the order in which jobs are executed.

Typed job syntax#

Typed Analysis Jobs declare a Cypher match pattern and the effect Cartography should apply. The framework compiles the write query and the cleanup query from those effects.

AnalysisJob(
    name="AWS EC2 instance internet exposure",
    short_name="aws_ec2_asset_exposure_instance",
    statements=(
        AnalysisStatement(
            match="MATCH (instance:AWSEC2Instance) WHERE instance.publicipaddress IS NOT NULL",
            effects=(
                SetProperty("instance", "exposed_internet", True, label="AWSEC2Instance"),
                AddToSet("instance", "exposed_internet_type", "direct", label="AWSEC2Instance"),
            ),
        ),
    ),
)

The typed syntax has three parts:

AnalysisJob(scope=CleanupScopedTo(...))
    -> AnalysisStatement(match="MATCH ...", effects=(...))
        -> SetProperty / AddToSet / AddRelationship / SetRelationshipProperty

        flowchart LR
    job["AnalysisJob"] --> scope["scope: CleanupScopedTo"]
    job --> stmt["AnalysisStatement"]
    stmt --> match["match: Cypher pattern"]
    stmt --> effects["effects"]
    effects --> write["generated write query"]
    effects --> cleanup["generated cleanup query"]

Common primitives:

Primitive

Use

SetProperty(node, property, value, label=...)

Set one node property and derive cleanup for that label.

SetProperties(node, {property: value}, label=...)

Set several node properties with one effect.

AddToSet(node, property, value, label=...)

Add a value to a list property without duplicates.

AddValuesToSet(node, property, values, label=...)

Add several values to a list property without duplicates.

AddRelationship(source, rel, target, source_label=..., target_label=...)

MERGE a relationship, set firstseen on create, set lastupdated every run, and derive stale-edge cleanup.

SetRelationshipProperty(rel, property, value, source_label=..., rel_label=...)

Set a relationship property and derive property cleanup.

Var("node.property")

Use a Cypher variable or property reference as a value.

Param("UPDATE_TAG")

Use a Cypher parameter as a value.

RawCypher("coalesce(...)")

Use a raw Cypher expression as a value.

CleanupScopedTo(label, id_param)

Constrain generated cleanup to one tenant/account/project.

label is required for node-property effects because cleanup needs to know which label owns the property. Plain Python strings become quoted Cypher strings, so use Var, Param, or RawCypher when the value should compile as Cypher.

CleanupScopedTo(...) lives on the AnalysisJob and describes the resource boundary used during generated cleanup, for example CleanupScopedTo("AWSAccount", "AWS_ID"). For relationship effects, scoped_to="source" or "target" lives on AddRelationship and chooses which endpoint is connected to that scoped resource. Keep the default source when the source node is under the scoped account/project; override it to target when only the target node is under that scope.

Example job: which of my EC2 instances is accessible to any host on the internet?#

The easiest way to learn how to write an Analysis Job is through an example. One of the Analysis Jobs included by default in Cartography’s source tree is AWS_EC2_ASSET_EXPOSURE_INSTANCE in cartography/analysis/aws/analysis.py. This tutorial covers only the EC2 instance part of that job, but after reading this you should be able to understand the other steps in that file.

Our goal#

After ingesting all our AWS data, we want to explicitly mark EC2 instances that are accessible to the public internet - a useful thing to know for anyone running an internet service. If any internet-open nodes are found, the job will add an attribute exposed_internet = True to the node. This way we can easily query to find the assets later on and take remediation action if needed.

But how do we make this determination, and how should we structure the job?

The logic in plain English#

We can use the following facts to tell if an EC2 instance is open to the internet:

  1. The EC2 instance is a member of a Security Group that has an IP Rule applied to it that allows inbound traffic from the 0.0.0.0/0 subnet.

  2. The EC2 instance has a network interface that is connected to a Security Group that has an IP Rule applied to it that allows inbound traffic from the 0.0.0.0/0 subnet.

The graph created by Cartography’s sync process already has this information for us; we just need to run a few queries to properly to mark it with exposed_internet = True. This example is complex but we hope that this exposes enough Neo4j concepts to help you write your own queries.

Translating the plain-English logic into Neo4j’s Cypher syntax#

We can take the ideas above and use Cypher’s declarative syntax to “sketch” out this graph path.

  1. The EC2 instance is a member of a Security Group that has an IP Rule applied to it that allows inbound traffic from the 0.0.0.0/0 subnet.

    In Cypher, this is

    MATCH
(:IpRange{id: '0.0.0.0/0'})-[:MEMBER_OF_IP_RULE]->(:IpPermissionInbound)
-[:MEMBER_OF_EC2_SECURITY_GROUP]->(group:AWSEC2SecurityGroup)
<-[:MEMBER_OF_EC2_SECURITY_GROUP]-(instance:AWSEC2Instance)

SET instance.exposed_internet = true,
    instance.exposed_internet_type = coalesce(instance.exposed_internet_type , []) + 'direct';

    In the SET clause we add exposed_internet = True to the instance. We also add a field for exposed_internet_type to denote what type of internet exposure has occurred here. You can read the documentation for coalesce, but in English this last part says “add direct to the list of ways this instance is exposed to the internet”.

  2. The EC2 instance has a network interface that is connected to a Security Group that has an IP Rule applied to it that allows inbound traffic from the 0.0.0.0/0 subnet.

    This is the same as the previous query except for the final line:

    MATCH
(:IpRange{id: '0.0.0.0/0'})-[:MEMBER_OF_IP_RULE]->(:IpPermissionInbound)
-[:MEMBER_OF_EC2_SECURITY_GROUP]->(group:AWSEC2SecurityGroup)
<-[:NETWORK_INTERFACE*..2]-(instance:AWSEC2Instance)

SET instance.exposed_internet = true,
    instance.exposed_internet_type = coalesce(instance.exposed_internet_type , []) + 'direct';

    The *..2 operator means “within 2 hops”. We use this here as a shortcut because there are a few more relationships between NetworkInterfaces and EC2SecurityGroups that we can skip over.

Finally, notice that (1) and (2) are similar enough that we can actually merge them like this:

MATCH
(:IpRange{id: '0.0.0.0/0'})-[:MEMBER_OF_IP_RULE]->(:IpPermissionInbound)
-[:MEMBER_OF_EC2_SECURITY_GROUP]->(group:AWSEC2SecurityGroup)
<-[:MEMBER_OF_EC2_SECURITY_GROUP|NETWORK_INTERFACE*..2]-(instance:AWSEC2Instance)

SET instance.exposed_internet = true,
    instance.exposed_internet_type = coalesce(instance.exposed_internet_type , []) + 'direct';

Kinda neat, right?

The skeleton of an Analysis Job#

Now that we know what we want to do on a sync, how should we structure the Analysis Job? Here is the basic skeleton that we recommend.

Clean up first, then update (properties)#

For analysis jobs that set custom attributes on nodes, the first statement(s) should be a “clean-up phase” that removes the custom attributes you may have added in a previous run. This ensures that whatever labels you add on this current run will be up to date and not stale. Next, the statements after the clean-up phase will perform the matching and attribute updates as described in the previous section.

MERGE first, then clean up (relationships)#

For analysis jobs that create or update relationships, invert the order: run the MERGE statements first, then DELETE any edge whose r.lastupdated <> $UPDATE_TAG at the end. Iterative DELETE statements commit per batch, so a leading DELETE of relationships creates a visible window during which concurrent readers observe the graph with those edges missing or partially deleted. MERGE is idempotent and bumps r.lastupdated on every still-valid edge, so the trailing DELETE only removes edges that genuinely no longer have a current basis. See AWS_LAMBDA_ECR in cartography/analysis/aws/analysis.py for the canonical ordering.

Here’s our final result:

{
  "name": "AWS asset internet exposure",
  "statements": [
      {
        "__comment": "This is a clean-up statement to remove custom attributes",
        "query": "MATCH (n)
                  WHERE n.exposed_internet IS NOT NULL
                        AND labels(n) IN ['AWSAutoScalingGroup', 'AWSEC2Instance', 'LoadBalancer']
                  WITH n LIMIT $LIMIT_SIZE
                  REMOVE n.exposed_internet, n.exposed_internet_type
                  RETURN COUNT(*) as TotalCompleted",
        "iterative": true,
        "iterationsize": 1000
      },
      {
        "__comment__": "This is our analysis logic as described in the section above",
        "query": MATCH (:IpRange{id: '0.0.0.0/0'})-[:MEMBER_OF_IP_RULE]->(:IpPermissionInbound)
                 -[:MEMBER_OF_EC2_SECURITY_GROUP]->(group:AWSEC2SecurityGroup)
                 <-[:MEMBER_OF_EC2_SECURITY_GROUP|NETWORK_INTERFACE*..2]-(instance:AWSEC2Instance)

                 SET instance.exposed_internet = true,
                     instance.exposed_internet_type = coalesce(instance.exposed_internet_type , []) + 'direct';,
        "iterative": true,
        "iterationsize": 100
      }
  ]
}

Setting a statement as iterative: true means that we will run this query on #{iterationsize} entries at a time. This can be helpful for queries that return large numbers of records so that Neo4j doesn’t get too angry.

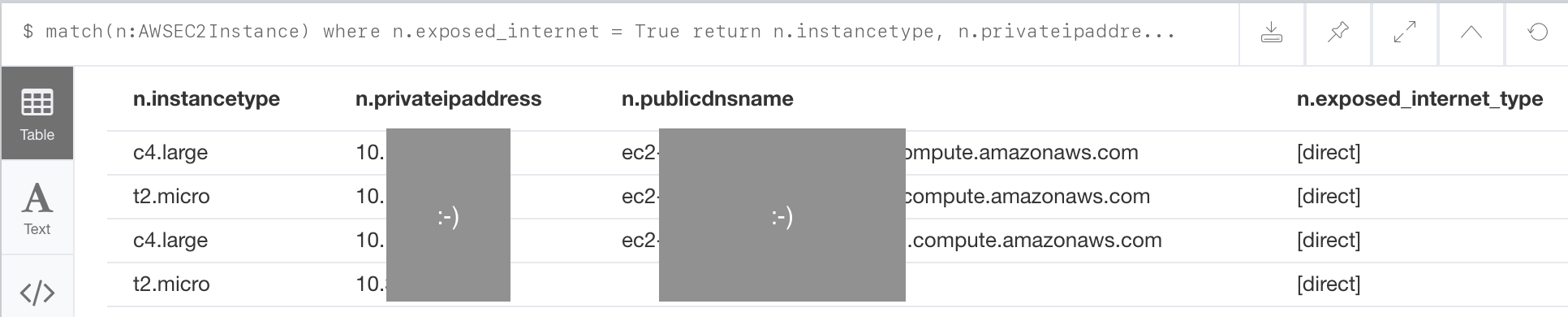

Now we can enjoy the fruits of our labor and query for internet exposure:

internet-exposure-query

Recap#

As shown, you create an Analysis Job by putting together a bunch of statements together (which are essentially Neo4j queries). In general, each job should first clean up the custom attributes added by a previous run, and then it can perform the match and update steps to add the custom attributes back again. This ensures that your data is up to date.
